In this tutorial, you will learn to merge two datasets and to subset a dataset (i.e., limit dataset to observations that meet a given criteria). We will also perform certain post-merge operations - left join, right join, and full merge. There are other procedures that can accomplish the same feat and, in some cases, more efficiently too. For example, PROC SQL.

Merge two datasets

Consider the following data on student performance. The course includes three quizzes (100 points each), two exams (200 points each), and a group project (500 points). The quizzes, exams, and project contributes 20%, 40%, and 40%, respectively, to the student’s grade. Project is a group activity and every student in a particular group gets the same score. Class has 20 students.

Cumulative Score is given as follows:

$$ \begin{align} \text{Score} = &0.2 \times \frac{(\text{Quiz1} + \text{Quiz2} + \text{Quiz3})}{3} + \\\ &0.4 \times \frac{(\text{Exam1} + \text{Exam2})}{4} + \\\
&0.4 \times \frac{\text{Project}}{5} \end{align} $$

I. Final grading scale is given as follows:

II. Group assignment is as follows:

To input raw data on group ids and form a dataset, run the code below.

SAS code:

data group_info; /* Creating a SAS data-set called "group_info" which identifies
                    which group a student belongs to */

 infile datalines dlm = "|"; /* Raw data is inputed in the code itself using "DATALINES".
                                Just copy and paste the data after the DATALINE;
                                Use any delimiter of your choice.
                                Here, strike "|" is used. */

 input id group ; /* identifies input variables, in that order */

 label /* labelling input variables */
  id    = "Student I.D."
  group = "Group I.D."
 ;

DATALINES;
 1|1
 2|1
 3|1
 4|1
 5|1
 6|2
 7|2
 8|2
 9|2
10|2
11|3
12|3
13|3
14|3
15|3
16|4
17|4
18|4
19|4
20|4
;
run;

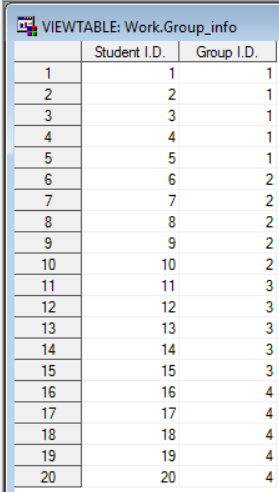

Click here to view how the group_info dataset looks like.

III. Individual scores on the three quizzes are as follows:

To input raw data on the three quizzes and form a dataset, run the code below.

SAS code:

data quiz; /* Creating a SAS data-set called "quiz" */

 infile datalines dlm = " "; /* Raw data is inputed in the code itself using "DATALINES".
                                Just copy and paste the data after the DATALINE;
                                Use any delimiter of your choice.
                                Here, "space" is used. */

 input id quiz1 quiz2 quiz3 ; /* identifies input variables, in that order */

 label /* labelling input variables */
  id    = "Student I.D."
  quiz1 = "Quiz 1"
  quiz2 = "Quiz 2"
  quiz3 = "Quiz 3"
 ;

DATALINES;
 1 33 61 76
 2 84 77 87
 3 50 63 98
 4 91 92 59
 5 61 83 58
 6 96 36 61
 7 78 65 80
 8 77 69 50
 9 74 31 54
10 65 58 33
11 38 42 83
12 68 71 29
13 70 19 87
14 68 53 65
15 18 38 67
16 31 14 72
17 44 58 18
18 69 16 65
19 68 43 76
20 53 39 56
;
run;

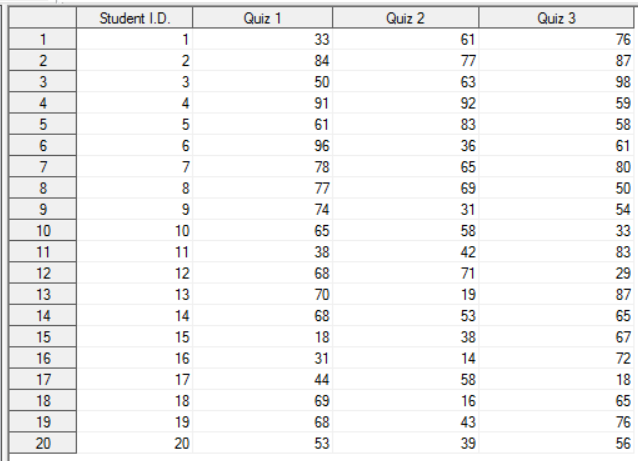

Click here to view how the quiz dataset looks like.

IV. Individual scores on the two exams are as follows:

To input raw data on the two exams and form a dataset, run the code below.

SAS code:

data exam; /* Creating a SAS data-set called "exam" */

 infile datalines dlm = ","; /* Raw data is inputed in the code itself using "DATALINES".
                                Just copy and paste the data after the DATALINE;
                                Use any delimiter of your choice.
                                Here, "comma" is used. */

 input id exam1 exam2 ; /* identifies input variables, in that order */

 label /* labelling input variables */
  id    = "Student I.D."
  exam1 = "Exam 1"
  exam2 = "Exam 2"
 ;

DATALINES;
 1,158,111
 2,168,142
 3,142,174
 4,181,125
 5,159,175
 6,156,152
 7,119,119
 8,114,138
 9,137,127
10,152,120
11,191,180
12,102,139
13,171,188
14,112,199
15,156,163
16,167,104
17,112,110
18,168,193
19,144,161
20,195,121
;
run;

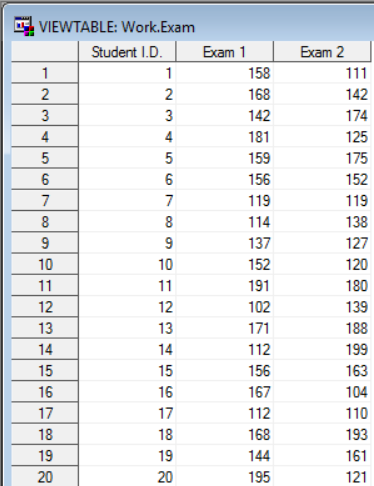

Click here to view how the exam dataset looks like.

Group scores on the project is as follows:

To input raw data on the project scores and form a dataset, run the code below.

SAS code:

data project; /* Creating a SAS data-set called "project" */

 infile datalines dlm = "!"; /* Raw data is inputed in the code itself using "DATALINES".
                                Just copy and paste the data after the DATALINE;
                                Use any delimiter of your choice.
                                Here, exclamation "!" is used. */

 input group project ; /* identifies input variables */

 label /* labelling input variables */
  group   = "Group I.D."
  project = "Project Score"
 ;

DATALINES;
1!486
2!452
3!378
4!313
;
run;

Click here to view how the project dataset looks like.

Merge all datasets

One-to-One Merge:

One-to-One Merge is a merging philosophy where each observation in first data-set is merged onto exactly one observation in the second data-set using the common variable. Note: Sorting by the common variable is a requisite for merging.

In this case, the three data-sets (group_info, quiz, and exam) are merged using the common variable Student I.D. id.

SAS code:

proc sort data=group_info ;
 by id;
run;

proc sort data=quiz ;
 by id;
run;

proc sort data=exam ;
 by id;
run;

data merged_data1;
 merge group_info quiz exam ;
 by id;
run;

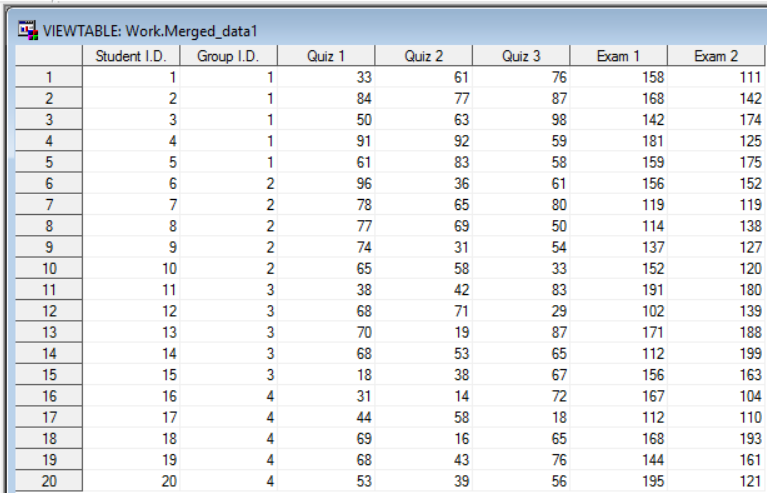

Click here to view how the merged_data1 dataset looks like.

Many-to-One Merge:

Many-to-One Merge is merging philosophy where each observation in second data-set is mapped onto more than one observation in the first data-set using the common variable. Note: Sorting by the common variable is a requisite for merging.

In this case, the merged_data1 dataset is merged using the common variable Group I.D. group to the project dataset.

SAS code:

proc sort data=merged_data1 ;
 by group;
run;

proc sort data=project ;
 by group;
run;

data merged_data;
 merge merged_data1 project ;
 by group;
run;

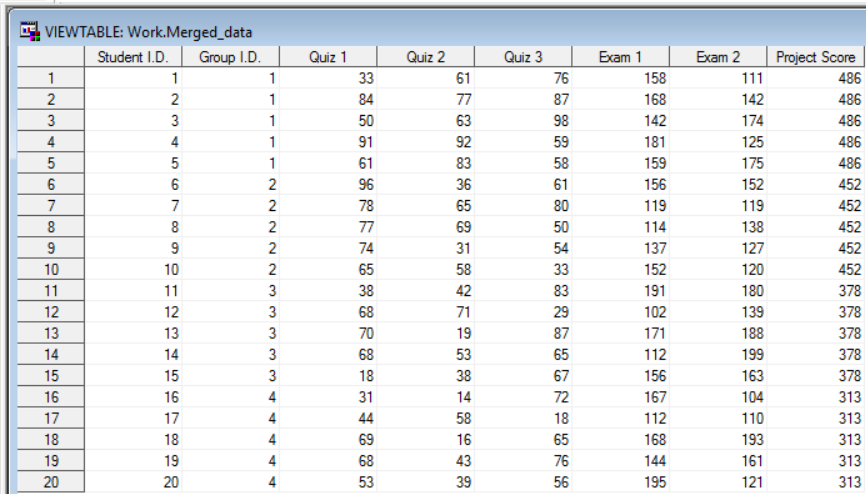

Click here to view how the merged_data dataset looks like.

Full code:

SAS code:

/************************************************************/
/* datset which identifies which group a student belongs to */
/************************************************************/
data group_info;
 infile datalines dlm = "|";
 input id group ;
 label
  id    = "Student I.D."
  group = "Group I.D."
 ;

DATALINES;
 1|1
 2|1
 3|1
 4|1
 5|1
 6|2
 7|2
 8|2
 9|2
10|2
11|3
12|3
13|3
14|3
15|3
16|4
17|4
18|4
19|4
20|4
;
run;

proc sort data=group_info ;
 by id;
run;

/************************************************************/
/* Creating a SAS data-set called "quiz"                    */
/************************************************************/
data quiz;
 infile datalines dlm = " ";
 input id quiz1 quiz2 quiz3 ;
 label
  id    = "Student I.D."
  quiz1 = "Quiz 1"
  quiz2 = "Quiz 2"
  quiz3 = "Quiz 3"
 ;

DATALINES;
 1 33 61 76
 2 84 77 87
 3 50 63 98
 4 91 92 59
 5 61 83 58
 6 96 36 61
 7 78 65 80
 8 77 69 50
 9 74 31 54
10 65 58 33
11 38 42 83
12 68 71 29
13 70 19 87
14 68 53 65
15 18 38 67
16 31 14 72
17 44 58 18
18 69 16 65
19 68 43 76
20 53 39 56
;
run;

proc sort data=quiz ;
 by id;
run;

/************************************************************/
/* Creating a SAS data-set called "exam"                    */
/************************************************************/
data exam;
 infile datalines dlm = ",";
 input id exam1 exam2 ;
 label
  id    = "Student I.D."
  exam1 = "Exam 1"
  exam2 = "Exam 2"
 ;

DATALINES;
 1,158,111
 2,168,142
 3,142,174
 4,181,125
 5,159,175
 6,156,152
 7,119,119
 8,114,138
 9,137,127
10,152,120
11,191,180
12,102,139
13,171,188
14,112,199
15,156,163
16,167,104
17,112,110
18,168,193
19,144,161
20,195,121
;
run;

proc sort data=exam ;
 by id;
run;

/************************************************************/
/* Merge "group_info", "quiz", and "exam" by variable "id". */
/************************************************************/
data merged_data1;
 merge group_info quiz exam ;
 by id;
run;

proc sort data=merged_data1 ;
 by group;
run;

/************************************************************/
/* Creating a SAS data-set called "project"                 */
/************************************************************/
data project;
 infile datalines dlm = "!";
 input group project ;
 label
  group   = "Group I.D."
  project = "Project Score"
 ;

DATALINES;
1!486
2!452
3!378
4!313
;
run;

proc sort data=project ;
 by group;
run;

/************************************************************/
/* Merge "merged_data1" and "project" by variable "group".  */
/************************************************************/
data merged_data;
 merge merged_data1 project ;
 by group;
	quiz = (quiz1 + quiz2 + quiz3)/3 ;        /* computing quiz score       */
	exam = (exam1 + exam2)/4 ;                /* computing exam score       */
	proj = project/5 ;                        /* computing project score    */
	cscore = 0.2*quiz + 0.4*exam + 0.4*proj ; /* computing cumulative score */

 /* assigning letter grades to the computed cumulative scores for each student */
 if cscore >= 93                 then lettergrade = "A+" ;
 if cscore >= 87 and cscore < 93 then lettergrade = "A"  ;
 if cscore >= 85 and cscore < 87 then lettergrade = "A-" ;
 if cscore >= 83 and cscore < 85 then lettergrade = "B+" ;
 if cscore >= 77 and cscore < 83 then lettergrade = "B"  ;
 if cscore >= 75 and cscore < 77 then lettergrade = "B-" ;
 if cscore >= 73 and cscore < 75 then lettergrade = "C+" ;
 if cscore >= 67 and cscore < 73 then lettergrade = "C"  ;
 if cscore >= 65 and cscore < 67 then lettergrade = "C-" ;
 if cscore >= 63 and cscore < 65 then lettergrade = "D+" ;
 if cscore >= 57 and cscore < 63 then lettergrade = "D"  ;
 if cscore >= 55 and cscore < 57 then lettergrade = "D-" ;
 if cscore <  55                 then lettergrade = "F"  ;

 label cscore      = "Cumulative Score"
       lettergrade = "Letter Grade"
 ;

 drop quiz exam proj ;

run;

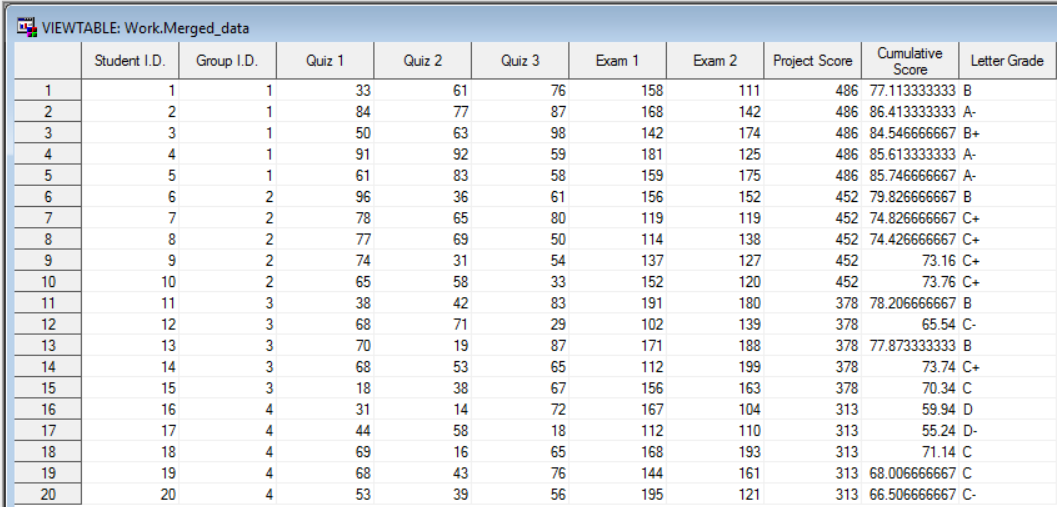

Click here to view how the merged_data dataset looks like.

Subsetting datasets

To create a subset of a data-set. For example, consider the final merged_data dataset created in the previous section.

Form subset datasets using numerical operations

SAS code:

/************************************************************/
/* create the data-set "grade_b" to retain all students who */
/* got a "B" grade                                          */
/************************************************************/
data grade_b ;
 set merged_data;
 if 75 <= cscore < 85 then output grade_b ;
run;

Form subset datasets using Boolean operators.

SAS code: Option 1

/************************************************************/
/* create the data-set "grade_b1" to retain all students who*/
/* got a "B" grade                                          */
/************************************************************/
data grade_b1 ;
 set merged_data;
 if lettergrade = "B-" or
    lettergrade = "B"  or
    lettergrade = "B+" then output grade_b1 ;
run;

SAS code: Option 2

/************************************************************/
/* create the data-set "grade_b2" to retain all students who*/
/* got a "B" grade                                          */
/************************************************************/
data grade_b2 ;
 set merged_data;
 if lettergrade = "B-" |
    lettergrade = "B"  |
    lettergrade = "B+" then output grade_b1 ;
run;

Form subset datasets using IN operators.

SAS code:

/************************************************************/
/* create the data-set "grade_b3" to retain all students who*/
/* got a "B" grade                                          */
/************************************************************/
data grade_b3 ;
 set merged_data;
 if lettergrade in ("B-", "B", "B+") then output grade_b3 ;
run;

Form subset datasets using LIKE (wildcard) operators.

SAS code:

/************************************************************/
/* create the data-set "grade_c" to retain all students who*/
/* got a "C" grade                                          */
/************************************************************/
data grade_c ;
 set merged_data;

 /* any lettergrade that starts with the letter 'C' */
 if lettergrade =: 'C' then output grade_c  ;

run;

Form all the above datasets in one step, use the code below.

SAS code:

data grade_b grade_b1 grade_b2 grade_b3 grade_c ;

 set merged_data;

 /* create the data-set "grade_b" to retain all students who got a "B" grade */
  if 75 <= cscore < 85  then output grade_b ; /* using numerical operations */

 /* create the data-set "grade_b1" to retain all students who got a "B" grade */
  if lettergrade = "B-" or
     lettergrade = "B"  or
     lettergrade = "B+" then output grade_b1 ; /* using OR operator */

 /* create the data-set "grade_b2" to retain all students who got a "B" grade */
  if lettergrade = "B-" |
     lettergrade = "B"  |
     lettergrade = "B+" then output grade_b2 ; /* using OR "|" operator */

 /* create the data-set "grade_b3" to retain all students who got a "B" grade */
  if lettergrade in ("B-","B","B+") then output grade_b3 ; /* using IN operator */

 /* using LIKE (wildcard) operator:
    any lettergrade that starts with the letter 'C' are retained */
 if lettergrade =: 'C'  then output grade_c  ;

run;

Form subset datasets using observation number (in-built function).

For example, keep only the students with the top (bottom) five scores in the data-set. Hint: A descending sort puts the top scorers on top, whereas an ascending sort puts the sottom scorers on the top.

SAS code:

proc sort data=work.merged_data; /* Sort the main data-set */
 by descending cscore; /* descending sort */
run;

data top5; /* Creating a SAS data-set "top5" */
 set merged_data;
 if _n_ <= 5; /* retain only the first 5 observations */
run;

proc sort data=work.merged_data; /* Sort the main data-set */
 by cscore; /* ascending sort */
run;

data bottom5; /* Creating a SAS data-set "bottom5" */
 set merged_data;
 if _n_ <= 5; /* retain only the first 5 observations */
run;

Practice Exercises

Repeat the grade computation if the three quizzes (100 points each), two exams (200 points each), and a project (500 points) contributes 20%, 40%, and 30%, respectively, to the student’s grade. The remaining 10% of the grade is based on class participation (100 points). Groups 1 and 2 obtained 85 points each in class participation. Groups 3 and 4 obtained 65 points each in class participation.

Cumulative Score, now, is given as follows:

$$ \begin{align} \text{Score} = &0.2 \times \frac{(\text{Quiz1} + \text{Quiz2} + \text{Quiz3})}{3} + \\\ &0.4 \times \frac{(\text{Exam1} + \text{Exam2})}{4} + \\\
&0.3 \times \frac{\text{Project}}{5} + \\\ &0.1 \times \text{Class Participation} \end{align} $$

Also, all plus-minus grade levels are abolished. The new grade scheme is as follows.

All other information remains the same as before. Create grade, top5, and bottom5 datasets, and PRINT them on screen.

Road map

• Data Input
• Data Manipulation
• Some useful PROC steps
• Merging and subsetting a dataset
• Compute descriptive statistics
• Compute test of differences
• Ordinary Least Squares
• Probit/Logit Regression
• DO loops
• WHILE loops
• NESTED loops
